Door/Window Casing 4-7/8" - 1
Door/Window Casing 4-7/8" - 1

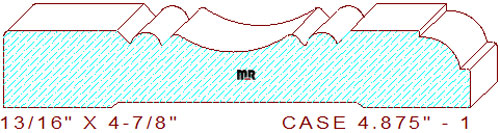

This Pickwick-style 4-7/8" - 1 door casing measures 4.875" wide by .812" thickness, enabling the detail to be milled from four-quarter lumber. The fashionable profile is composed of a 1-3/16" wide flat line with a 1/16" eased outer edge on the top left, attached to a symmetrical 1-1/64" cove flanked by two downward beveled edges and a 11/32" wide half round bead bordered by an upward sloping angled line in the center, merged to a 23/32" broad segment and a 13/32" radius ovolo with a 3/64" eased edge on the right side of the design. We offer quite a few wall paneling and baseboard patterns with equivalent design features to compliment this profile; here are a few you may want to review and consider, tongue & groove 6.750" - 2 and baseboard 7-1/2" - 29.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.875
Depth of Cut: 0.600
Bottom Cutter Head
Width: 4.875
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.50
$335.50
Total:
$671.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$358.00
$358.00
Total:
$716.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$391.75
$391.75
Total:
$783.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
