Door/Window Casing 4-15/16"
Door/Window Casing 4-15/16"

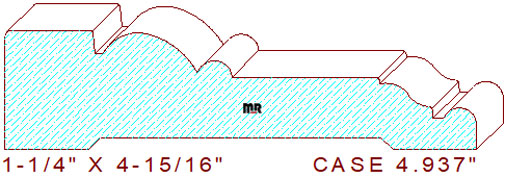

This beautiful 4-15/16" door/window casing measures 4.937" wide by 1.250" thickness, enabling milling out of six-quarter lumber. The visually appealing profile is composed of a 15/16" tall raised fillet with a 1/16" rounded outer edge on the top left, connected to a 7/64" sunk fillet that joins to a thumbnail shaped arc and a 3/8" wide half round bead with a 1-9/16" broad flat line in the center, attached to a 1/16" vertical step and a small ogee merged with a 1/8" wide sunk fillet, and an 11/32" half circle on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.938
Depth of Cut: 1.125
Bottom Cutter Head
Width: 4.938
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$361.53
$338.78
Total:
$700.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$384.28
$361.53
Total:
$745.81
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$418.41
$395.66
Total:
$814.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
