Door/Window Casing 5"
Door/Window Casing 5"

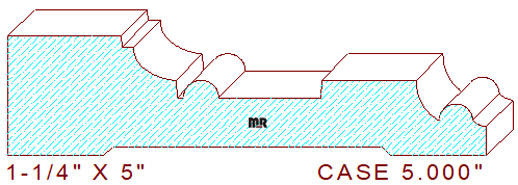

This decorative 5" door/window casing measures 5.000" wide by 1.250" thick. The striking profile is comprised of a 1-3/16" broad horizontal line with a small notched fillet connected to an elliptical-shaped cavetto with a 1/16" wide sunk fillet, attached to a 3/16" radius half circle and a 1-1/16" flat area in the center. It's joined to a 1" wide raised fillet and a 15/32" radius cove with a half round bead and a 3/16" radius cove on the thin side of the pattern. Try utilizing one of our many different sized backbands on the left side of this pattern, create a stylish and unique door casing for your beautiful home or office.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.945
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$365.00
$342.00
Total:
$707.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$388.00
$365.00
Total:
$753.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$422.50
$399.50
Total:
$822.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
