Gorgeous Casing Moulding 5" - 10

Gorgeous Casing Moulding 5" - 10

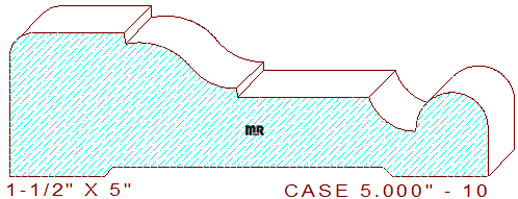

This Gorgeous Casing Moulding 5" - 10 measures 5.000" wide by 1.500" thickness, with a 1.125" depth of cut on the top horizontal profile knives. Search our backout category for an appropriate relief cut for this detail, we have a few patterns for you to select from.

The bold profile is comprised of a 1-13/64" wide horizontal fillet with a 1/4" radius edge, connected to two tangent radiuses creating a cyma reversa flanked by small vertical lines, attached to a 1-3/8" wide horizontal line with a 33/64" radius cove and a 3/8" radius half round circle positioned on the thin side of the pattern.

Architects, interior designers, lumber mills, and moulding manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our profile designs, please contact us, we would be honored to assist you.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
