Door/Window Casing 5" - 16
Door/Window Casing 5" - 16

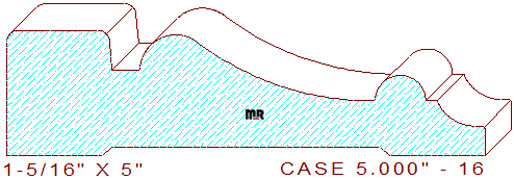

This delightful 5" - 16 colonial door/window casing measures 5.000" wide by 1.312" thickness, enabling the detail to be machined out of six-quarter lumber. The beautifully bold profile is composed of a 1-3/32" wide by 13/32" tall raised fillet with 1/8" rounded edges on the left, connected to a 9/32" wide sunk fillet that joins to a two tangent radius cyma reversa constructed from a 3/8" radius arc and a three-inch concave semicircle in the center. It's attached to a 17/32" wide half-round bead merged to a 1/8" wide line segment with a 27/64" cove and a 3/64" eased edge on the right side of the pattern. We offer an alternative profile in the same width you may want to review and consider, door casing 5.000" - 14.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 1.196
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$388.00
$342.00
Total:
$730.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$411.00
$365.00
Total:
$776.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$445.50
$399.50
Total:
$845.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
