Casing Moulding 5" - 29

Casing Moulding 5" - 29

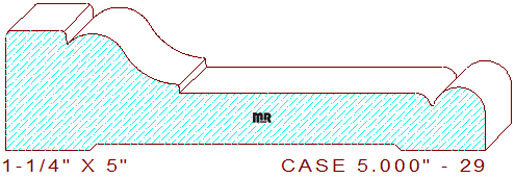

This Custom Casing Moulding 5" - 29 measures 5.000" wide by 1.250" thickness with a depth of cut of 1.045" for the top set of moulder cutters, please browse our backout category for a suitable relief cut for the back side of the detail. The innovative profile is comprised of a 5/8" wide double eased edge fillet connected to an elevation changing cyma reversa that transitions into a 1-41/64" wide straight line with a 5/32" radius attached to a 9/32" radius half round bead positioned on the thin side of the pattern. Please read our Moulder Pressure Shoe – Custom Made, this article will help you mill this casing profile to perfection on an industrial style moulder machine.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
