Door/Window Casing 5" - 42
Door/Window Casing 5" - 42

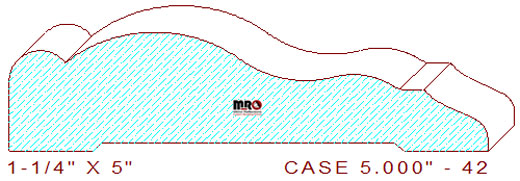

This distinguished 5" - 42 door/window casing measures 5.000" in width by 1.250" in thickness. The graceful pattern composes a 19/32" broad half-circle on the top left. It connects to a gentle downsloping s-shaped curvature consisting of three tangent radii with a shallow ogee on the design's right edge. The recommended rough wood rip size using four-quarter lumber is 5-1/4" wide.
Whether you have a Weinig R-960 profile grinder or a CNC template-making machine, our innovative profiles will save valuable time and money in your demanding production schedule.
The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.764
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.674
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.00
Not Needed
$365.00
$342.00
Total:
$862.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$163.00
Not Needed
$388.00
$365.00
Total:
$916.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$175.00
Not Needed
$422.50
$399.50
Total:
$997.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
