Door/Window Casing 5" - 7

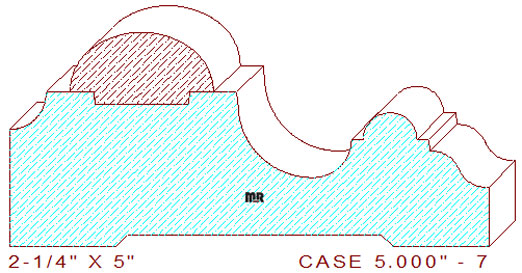

This two-piece 5" - 7 door casing measures 5.000" wide by 2.250" thickness. the smaller half round profile has a .750" depth of cut on the top, and a 1/8" depth of cut on the bottom horizontal set of moulding cutters. Browse our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.

The bulky profile is comprised of a 1-1/2" wide, elliptical shaped half round circle flanked by 1/2" wide horizontal fillets with a 3/8" radius cavetto on the thicker side of the design. The center of the pattern consists of a two tangent radius scotia, connected to a 9/32" radius half round circle flanked by 1/8" wide fillets, attached to two 5/16" radius tangent arcs, creating an ogee on the thin side of the design.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.
