Door/Window Casing 5-1/8"
Door/Window Casing 5-1/8"

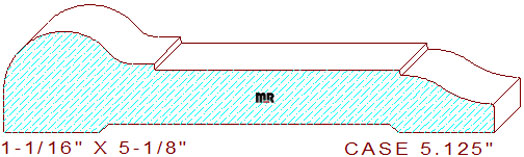

This designer 5-1/8" door casing measures 5.125" wide by 1.062" thickness, necessitating the use of five-quarter lumber for milling on an industrial moulder. The beautiful custom profile is composed of a 5/8" radius bullnose tangent to a 5/16" concave semicircle and a 15/64" flat line with a 1/16" vertical step on the top left. It's connected to a 1-9/16" broad line segment with an additional 1/16" drop in elevation in the center, attached to a two tangent radius ogee with a 3/64" eased edge leaving a 5/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.125
Depth of Cut: 0.952
Bottom Cutter Head
Width: 5.125
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$372.00
$348.50
Total:
$720.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$395.50
$372.00
Total:
$767.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.75
$407.25
Total:
$838.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
