Door/Window Casing 5-3/16" - 2
Door/Window Casing 5-3/16" - 2

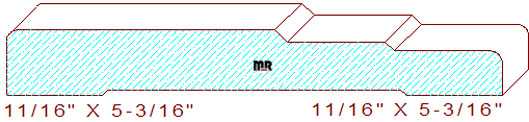

This three-step 5-3/16" - 2 door/window casing measures 5.188" wide by .687" thickness, authorizing the use of four-quarter lumber for milling on a commercial moulder. The modern profile contains a 2-13/16" wide raised fillet with a 1/8" rolled outer, and a 1/8" deep beveled inside edge on the top left. Attached to a 1-1/4" broad flat line with a 3/32" angled drop in elevation in the center joined to a 1-1/8" line segment with a 1/8" eased edge, leaving a 15/32" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.188
Depth of Cut: 0.500
Bottom Cutter Head
Width: 5.188
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$351.78
$351.78
Total:
$703.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$375.53
$375.53
Total:
$751.06
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$411.16
$411.16
Total:
$822.31
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
