Casing Moulding 5-1/4"

Casing Moulding 5-1/4"

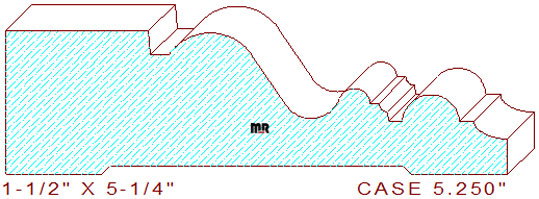

This elegant casing moulding 5-1/4" measures 5.250" wide by 1-1/2" thickness. The elaborate profile is comprised of a 1" wide horizontal line with a 1/4" deep step with a 3/16" wide sunk fillet, attached to a deep sloping cyma reversa that transitions into a half round bead with a tiny cove, flanked by a small vertical and horizontal line joined to a 5/8" wide half round circle with a 5/32" horizontal lines on each side with an elliptical shaped cove on the thin side of the design. We have a larger version of this pattern available for your review and consideration, casing 6.000"- 1.

All cad (computer aided design) files contain important moulder setup and grinding information all designed to help you save time and money in the production process. Thanks for allowing us to help enhance a home's marvelous architectural details, one astonishingly gorgeous profile at a time.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 5.250" / Depth of Cut = 1.125" (top knives) & .093" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
