Casing Moulding 5-1/4" - 2

Casing Moulding 5-1/4" - 2

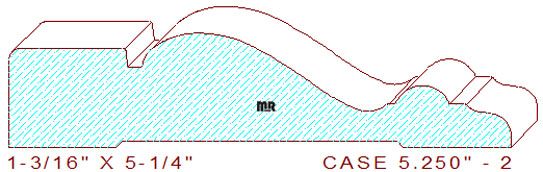

This Large Casing Moulding 5-1/4" - 2 measures 5.250" wide by 1.187" thickness, the profile is comprised of a 1/8" radius edge fillet attached to a sunk fillet that transitions into a cyma reversa in the center which is connected to a half round bead flanked by small fillets with a cyma recta positioned on the thin side of the pattern. The depth of cut of the moulding knives is 1.187" requiring 2.750" wide knife steel blanks, the cutters will come within .020" of the bed plates while milling the detail on an industrial style moulder providing the .020" shim is in position under the last bottom bedplate.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
