Door/Window Casing 5-1/4" - 3
Door/Window Casing 5-1/4" - 3

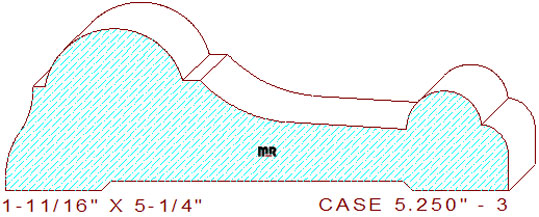

This beautiful bold 5-1/4" - 3 door casing measures 5.250" wide by 1.687" thickness, requiring eight-quarter lumber for milling on an industrial moulder. The lovely custom profile is composed of a 1-7/16" wide half-round circle joined to a 1/8" broad line segment and a two tangent radius cyma recta on the left side. It's attached to a 3/16" broad segment and a down sloping 1-13/32" radius cong'e in the center, merged with a 25/32" wide half circle and a 3/16" quarter round over on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.687
Depth of Cut: 0.282
Left Cutter Head
Thickness: 1.687
Depth of Cut: 0.282
Top Cutter Head
Width: 5.250
Depth of Cut: 1.053
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.72
$169.72
$379.00
$355.00
Total:
$1073.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$179.47
$179.47
$403.00
$379.00
Total:
$1140.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$194.09
$194.09
$439.00
$415.00
Total:
$1242.19
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
