Door/Window Casing 5-5/16" - 1
Door/Window Casing 5-5/16" - 1

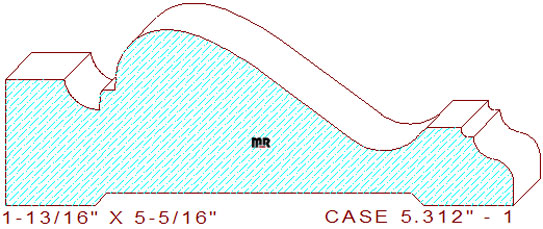

This unique 5-5/16" - 1 door casing measures 5.312" wide by 1.813" thickness, necessitating the use of eight-quarter lumber for milling on an industrial moulder. The beautiful custom profile is composed of a 5/8" broad flat line segment at a 1-5/16" thickness dimension on the top left. It's attached to a 3/8" cove that joins to a 1/8" wide by 13/64" tall up-step with a 1/16" round-over, merged with a graceful elevation changing four tangent radii s-shaped curvature in the center, fastened to a 23/64" wide fillet and a tiny notched cove and a two tangent radius cyma recta/ogee on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.312
Depth of Cut: 1.250
Bottom Cutter Head
Width: 5.312
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$406.72
$358.22
Total:
$764.94
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.97
$382.47
Total:
$813.44
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$467.34
$418.84
Total:
$886.18
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
