Door/Window Casing 5-3/8"
Door/Window Casing 5-3/8"

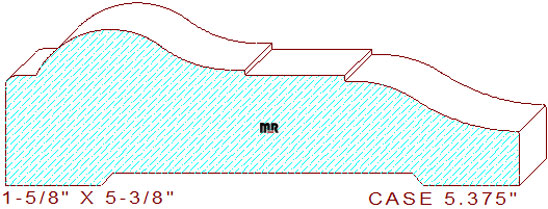

This hefty 5-3/8" door casing measures 5.375" wide by 1.625" thickness, requiring the use of eight-quarter lumber for milling on an industrial moulder. The beautiful profile is composed of a 21/64" broad flat line with a 1/8" rounded outside edge on the top left, connected to a 7/8" convex arc tangent to a 1-3/16" concave semicircle creating the cyma reversa with a 1/16" drop in elevation in the center, joined to a 1-3/64" broad line segment with another 1/16" drop in elevation, merged with a 1-5/32" convex arc tangent to a two-inch concave semicircle with a 3/64" eased edge leaving a 9/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.375
Depth of Cut: 1.259
Bottom Cutter Head
Width: 5.375
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$410.50
$361.50
Total:
$772.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$435.00
$386.00
Total:
$821.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$471.75
$422.75
Total:
$894.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
