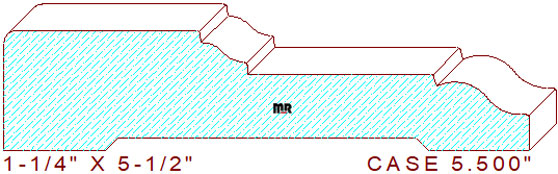

This stylish 5-1/2" door/window casing measures 5.500" wide by 1.250" thickness, necessitating the use of six-quarter lumber for milling. The visually attractive profile is composed of a 2-1/16" wide flat line with a 1/8" rounded outer edge on the top left, attached to a 1/8" vertical step that joins to a small ogee derived from two tangent 5/16" radiuses with another 1/8" drop in elevation in the center, connected to a 1-15/16" wide horizontal line segment with a 1/8" beveled edge, merged with an additional ogee made up from two tangent 7/16" semicircular convex and concave arcs with a 3/64" eased edge, leaving a 3/8" thickness dimension on the right side of the design. We offer an alternative profile with similar design characteristics in the same width for your review and consideration, door/window casing 5.500" - 12, this pattern will allow the detail to be machined from a smaller thickness lumber.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 1.093
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$393.00
$368.00
Total:
$761.00
