Casing Moulding Profile 5-1/2" - 1

Casing Moulding Profile 5-1/2" - 1

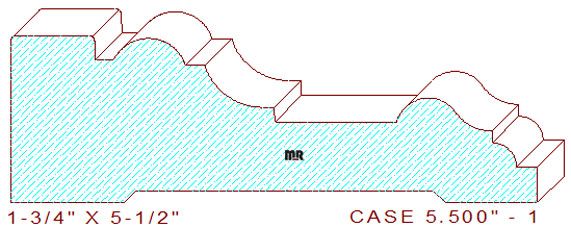

This case moulding measures 5-1/2" wide by 1-3/4" thickness, this creative ornate pattern is loaded with fancy geometrical shapes: they include a 7/8" wide fillet with a 1/16" radius on both sides, a 3/4" wide half round circle flanked by a quirk on one side, and a fillet on the other, a small cong'e with a 5/8" radius cove, 1 1-9/16" wide sunk fillet, a cyma reversa that attaches itself to an ovolo located on the inner side of the pattern. This moulding is too large to be milled by a single set of moulding knives so we have split up the design in two parts, the ovolo will be milled on the right spindle, and the remaining detail will be milled on the top spindle of the moulder, both designs are included in the downloadable dxf file.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
