Door/Window Casing 5-1/2" - 11
Door/Window Casing 5-1/2" - 11

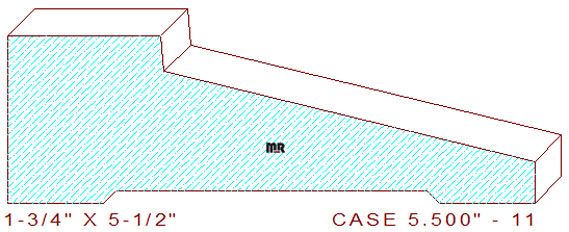

This lovely beveled 5-1/2" - 11 door/window casing measures 5-1/2" wide by 1-3/4" thickness. The profile comprises a 1-5/8" wide stepped fillet that steps down 3/8" to a splay-faced angle at 13.6 degrees leaving a 7/16" thickness remaining at the thinner side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 1.344
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$418.00
$368.00
Total:
$786.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$443.00
$393.00
Total:
$836.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$480.50
$430.50
Total:
$911.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
