Door/Window Casing 5-1/2" - 15
Door/Window Casing 5-1/2" - 15

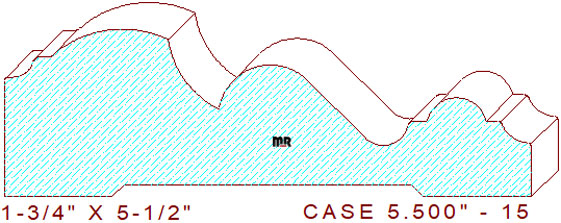

This beautifully creative 5-1/2" - 15 door casing measures 5.500" wide by 1.750" thickness, permitting the pattern to be machined out of eight-quarter lumber. The ornate elegant profile is composed of a 13/64" cove with 3/64" eased edges and a 5/32" flat line on the top left, connected to a 1-7/64" convex arc that transitions into a 31/64" concave semicircle with a deep down-sloped s-shaped curvature in the center, attached to a 5/8" wide half round bead flanked by a 3/16" fillet on the left, and a 5/32" line segment on the right, merged with a 5/16" cove with a 3/64" eased edge, leaving a 9/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 1.312
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$418.00
$368.00
Total:
$786.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$443.00
$393.00
Total:
$836.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$480.50
$430.50
Total:
$911.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
