Door/Window Casing 5-1/2" - 4
Door/Window Casing 5-1/2" - 4

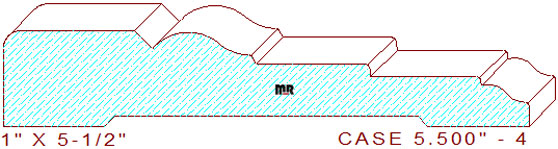

This extravagant 5-1/2" - 4 door/window casing measures 5.500" wide by 1.000" thickness, allowing machining out of five-quarter lumber. The beautifully tiered profile comprises a 1-3/8" flat line with a 3/16" rounded outer and a 3/16" beveled inside edge on the top left. It's merged with a graceful cyma reversa made up of two 1/2" tangent radiuses with a 3/32" sixty-degree beveled edge in the center, attached to a 1-5/32" horizontal line with a 9/64" vertical step, joined to another 1-5/32" line segment with a 3/32" drop in elevation transitioning into a small ogee derived from two 1/4" tangent semicircles with a 3/64" eased edge, leaving a 1/4" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.750
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$393.00
$368.00
Total:
$761.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$418.00
$393.00
Total:
$811.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$455.50
$430.50
Total:
$886.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
