Casing Moulding 5-1/2" - 5

Casing Moulding 5-1/2" - 5

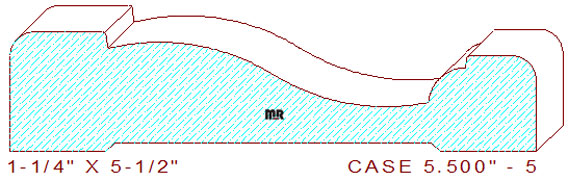

This Gorgeous Casing Moulding 5-1/2" - 5 measures 5.500" wide by 1.250" thickness, the stylish design is comprised of a 1" wide by 11/64" deep stepped fillet with a 1/4" radius edge connected to an elongated cyma reversa consisting of two 2-1/4" tangent radiuses that transitions into a quarter round circle that is attached to a vertical fillet and a 3/4" horizontal line with a 1/4" radius edge. From just an idea in your mind to reality in your home, our moulding profile designs reflect the beauty of your imagination.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
