Door/Window Casing 5-1/2" - 6
Door/Window Casing 5-1/2" - 6

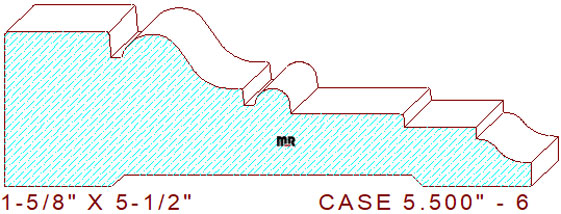

This bold, extravagant 5-1/2" - 6 door/window casing measures 5.500" wide by 1.625" thickness, necessitating eight-quarter lumber for milling. The striking profile is composed of a 1-1/8" wide by 9/32" tall raised fillet with a 1/16" eased outer edge on the top left. It's connected to a 7/64" wide sunk fillet and a two tangent radius cyma reversa with a 3/16" vertical step, joined to another 7/64" recessed fillet and a 3/8" wide half-round bead with a 1-3/16" broad segment in the center. The remaining section attaches a 9/64" steep drop in elevation and a 5/8" flat line with a 1/8" vertical step, connected to a two tangent radius ogee with a 3/64" eased edge on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.577
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.812
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
Not Needed
$393.00
$368.00
Total:
$927.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
Not Needed
$418.00
$393.00
Total:
$987.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
Not Needed
$455.50
$430.50
Total:
$1076.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
