Door/Window Casing 5-1/2" - 7

Door/Window Casing 5-1/2" - 7

Door/Window Casing 5-1/2" - 7

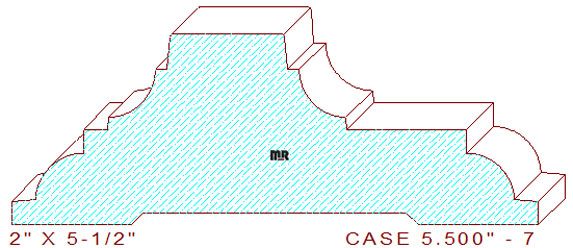

This exuberant 5-1/2" - 7 door/window casing measures 5.500" wide by 2.000" thick. The luxuriant profile comprises a slightly off-center double-radius edge stepped fillet attached to a 1/2" radius cavetto/cove with an ovolo positioned on each side edge of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.000
Depth of Cut: 0.750
Left Cutter Head
Thickness: 2.000
Depth of Cut: 0.750
Top Cutter Head
Width: 5.500
Depth of Cut: 1.000
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.125

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.50
$148.50
(Template not needed)
$380.50
$355.50
Total:
$1076.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$202.50
$159.50
(Template not needed)
$405.50
$380.50
Total:
$1148.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$213.50
$170.50
(Template not needed)
$430.50
$405.50
Total:
$1220.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
