Door/Window Casing 5-3/4"
Door/Window Casing 5-3/4"

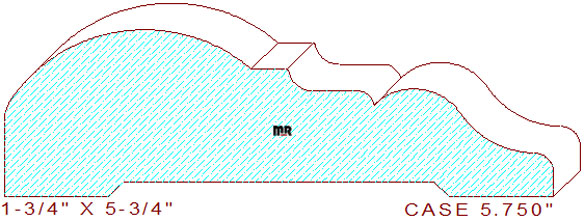

This beautifully bold 5-3/4" door casing measures 5.750" wide by 1.750" thickness, necessitating the use of eight-quarter lumber for milling. The charming undaunted profile is composed of a 7/16" rounded edge on the top left, tangent to a 1-45/64" semicircular arc and a 27/32" wide bidirectional cong'e, derived from a 1/4" concave semicircle and a 3/16" convex arc in the center. It's joined to an elegant three-tangent radius wavy curvature on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.750
Depth of Cut: 1.090
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.750
Depth of Cut: 1.125
Bottom Cutter Head
Width: 5.750
Depth of Cut: 0.156
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$183.00
Not Needed
$407.00
$381.00
Total:
$971.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$193.00
Not Needed
$433.00
$407.00
Total:
$1033.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$208.00
Not Needed
$472.00
$446.00
Total:
$1126.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
