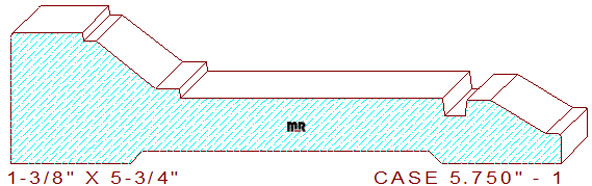

This esteemed 5-3/4" - 1 door casing measures 5.750" wide by 1.375" thickness, allowing machining from either six, or eight-quarter lumber. The elegant profile is composed of a 3/4" wide by 3/32" tall raised fillet with a 1/16" eased outer edge on the top left, connected to a 9/64" wide by 3/32" deep perpendicular notch, joined to a 38.515 degree down-sloping angled line that merges with a 1/4" wide by 3/32" deep step and a 2-3/4" flat line segment in the center. The remaining section attaches a 1/4" wide by 3/16" deep dado and a 1/4" wide fillet that transitions into a 31.067-degree beveled line with a 5/32" flat edge leaving a 5/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.750
Depth of Cut: 1.250
Bottom Cutter Head
Width: 5.750
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$433.00
$381.00
Total:
$814.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$459.00
$407.00
Total:
$866.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$498.00
$446.00
Total:
$944.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
