Door/Window Casing 5-3/4" - 2
Door/Window Casing 5-3/4" - 2

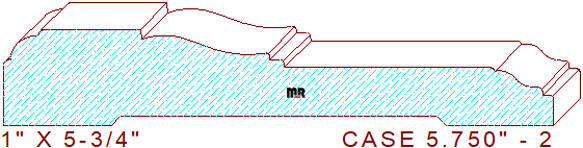

This delightful 5-3/4" - 2 door/window casing measures 5.750" wide by 1.000" thickness, permitting machining out of five-quarter lumber. The striking profile is composed of a 1-7/16" broad flat line with a 15/64" quarter round arc flanked by 1/16" rounded edges on the top left, connected to a 7/64" vertical step that merges with a shallow two tangent radius cyma reversa with a 1/16" drop in elevation, attached to a 5/32" wide by 3/32" tall perpendicular step, joined to a 2-13/64" flat segment and a small ogee with another tiny notch on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.750
Depth of Cut: 0.883
Bottom Cutter Head
Width: 5.750
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$407.00
$381.00
Total:
$788.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$433.00
$407.00
Total:
$840.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$472.00
$446.00
Total:
$918.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
