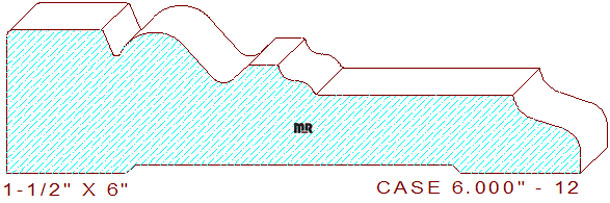

This professionally drafted cad dxf file contains two high precision moulding template designs to create cutters for this lovely casing detail. From just an idea in your mind, to reality in your home, our molding profiles reflect the beauty and style of your imagination, let us help design your custom pattern today.
For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.
Width = 6.000" / Depth of Cut = .679" (top knives) & .093" (bottom cutters).
Thickness = 1.500" / Depth of Cut = .710" (right blades).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
