Door/Window Casing 6" - 2
Door/Window Casing 6" - 2

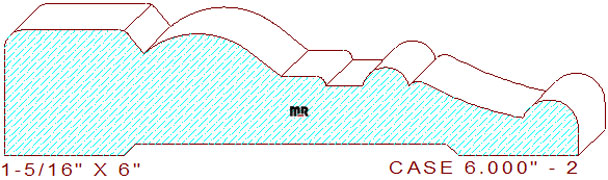

This distinguished 6" - 2 door/window casing measures 6.000" wide by 1.312" thickness, enabling machining from six-quarter lumber. The beautifully ornate profile is composed of a 1-29/64" wide raised fillet with a 3/16" eased outer and a 1/2" rounded inner edge on the top left, attached to a down-sloping thumbnail shaped arc the joins to a spherical step line segment and a 25/64" wide sunk fillet in the center, connected to a 31/64" wide half round bead merged with a 1/8" convex arc tangent to a 3-51/64" concave semicircle with a 37/64" wide half circle on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 1.156
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$448.00
$394.00
Total:
$842.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$475.00
$421.00
Total:
$896.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$515.50
$461.50
Total:
$977.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
