Casing Moulding 6-1/16"

Casing Moulding 6-1/16"

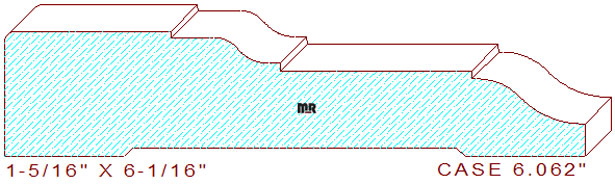

This Colonial Case Moulding 6-1/16" measures 6.062" wide by 1.312" thickness, with a .968" depth of cut on the top horizontal set of knives. Search our backout category for a suitable relief cut for this detail, we have a few options to choose from. You may have to change the backout search parameters by an eighth of an inch or so to find a suitable size pattern.

The hefty profile is comprised of a 1-3/4" wide horizontal fillet with a 1/8" radius edge, that transitions into a stepped cyma reversa which is joined to a 2" wide by 3/32" deep step, merged with another deeper cyma reversa positioned at the top of the pattern.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five degree back clearance angle, will rough grind a set of high-speed steel moulding knives in a very minimal amount of time.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
