Door/Window Casing 6-1/2"
Door/Window Casing 6-1/2"

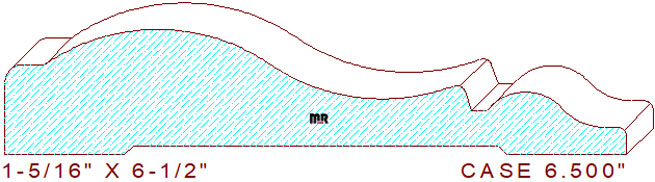

This large decorative 6-1/2" door/window casing measures 6.500" wide by 1.312" thickness, enabling machining out of six-quarter lumber. The aesthetic profile comprises a 27/64" broad segment with a 3/16" rolled edge on the top left. It's connected to an elegant two tangent radius cyma reversa with a 3/32" point and a 17/64" beveled edge in the center, joined to a 5/32" sunk fillet that merges with an additional shorter ogee and a 3/32" rollover on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.500
Depth of Cut: 1.273
Bottom Cutter Head
Width: 6.500
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$478.00
$420.00
Total:
$898.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$507.00
$449.00
Total:
$956.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$550.50
$492.50
Total:
$1043.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
