Door/Window Casing 7-3/8"

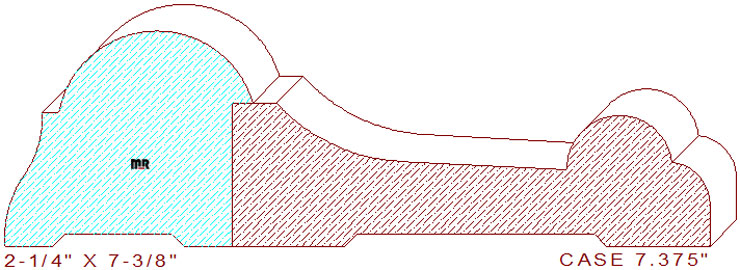

This largely distinguished two-piece 7-3/8" door casing measures 7.375" wide by 2.250" thickness when the two pieces are joined together. The first piece on the top left in blue measures 1.594" wide by 2.250" thickness, allowing this piece to be machined out of eight quarter lumber. It is comprised of a 3/32" tall vertical line on the bottom, joined to a two tangent radius ogee on the left side, the top consists of an 11/64" wide line segment on the left, merged with a 2-1/32" wide half round arc on top, the rabbet dimension is 7/32" wide by 1-1/2" tall. The second piece in brown measures 5" wide by 1-1/2" tall. It is comprised of a 15/32" wide flat top on the left, connected to a 3-1/32" wide down-sloping cong'e made up from a 1-53/64" cove in the center, merged with a 1-3/32" wide half round bead and a decorative 29/64" quarter round on the right side of the design.

For knife quoting purposes click to open the calculator below; we supplied only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation of using the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Piece-1 Width = 2.594" / Depth of Cut = .852" (top knives) & .125" (bottom cutters).

Thickness = 2.250" / Depth of Cut = .392" (right blades) & .219" (left cutters).

Piece-2 Width = 5.000" / Depth of Cut = 1.218" (top knives) & .125" (bottom cutters).
