Door/Window Casing 8"

Door/Window Casing 8"

Door/Window Casing 8"

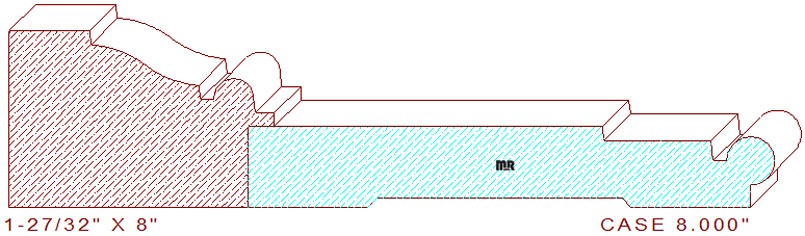

This massive 8" two-piece door/window casing measures 8.000" wide by 1.843" thickness. Due to the considerable depth of cut, the profile gets milled in two separate production runs. The thicker profile of two is comprised of a 7/8" wide by 9/64" deep stepped fillet, connected to two 1-3/32" tangent radius arcs, joined to a 9/64" wide sunk fillet with a 13/64" radius half circle and a 13/64" wide stepped fillet located above the rabbet. The smaller but wider pattern is comprised of a 3-23/32" wide by 9/64" deep stepped fillet, connected to another 1-1/8" wide by 1/4" deep stepped fillet, that transitions into a 5/32" wide sunk fillet, with a three-quarter round, 1/4" radius circle located on the thin side of the detail. We also have a smaller similar profile available of this style of door casing for your review and consideration, door/window casing 4.250 - 2"

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.843
Depth of Cut: 0.250
Left Cutter Head
Thickness: 1.843
Depth of Cut: 0.273
Top Cutter Head
Width: 5.500
Depth of Cut: 0.357
Bottom Cutter Head
Width: 2.813
Depth of Cut: 0.857

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$172.65
$355.50
$235.40
Total:
$894.05
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$183.02
$380.50
$249.65
Total:
$950.68
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$193.39
$405.50
$263.91
Total:
$1007.30
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
