Chair Rail Moulding 2-3/4" - 13

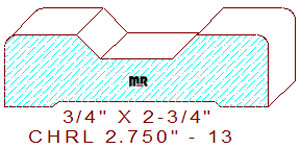

This fancy symmetrical chair rail molding 2-3/4" - 13, measures 2.750" wide by .750" thickness, requiring the use of four quarter lumber for milling on a industrial-grade molder. The balanced profile contains a 3/4" wide flat sunken fillet in the top center. Flanked by two upsloping forty-five degrees beveled lines that raise the elevation by 1/4", joined to a 3/4" full flat horizontal line segment with 1/8" eased edges on each side edge of the design. Explore our backout category for an appropriate relief cut for the bottom of this detail, we're confident you will find a suitable design to match your needs.

Looking for that special moulding to enhance the architectural style of your current project, send us a sketch, custom profile design is our specialty. Experience the elegant beauty we can create together from your outlined idea concepts and our vast knowledge of the woodworking industry.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 2.750" / Depth of Cut = .281" (top knives) & .063" (bottom cutters).
