Chair Rail Moulding 2-3/4" - 15

Chair Rail Moulding 2-3/4" - 15

Chair Rail Moulding 2-3/4" - 15

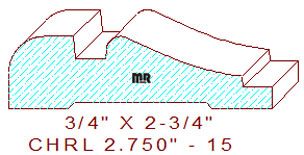

This chair rail moulding 2-3/4" - 15 measures 2.750" wide by .750" thickness. The profile is comprised of a 3/8" radius edge fillet attached to a 5/16" wide sunk fillet (nice area for inserting a small rope moulding or another decorative inlay) that transitions into an elongated cyma reversa connected to a 5/16" wide by .177" deep notched fillet positioned on the thin side of the detail.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
