Chair Rail Moulding 2-7/8" - 2

Chair Rail Moulding 2-7/8" - 2

Chair Rail Moulding 2-7/8" - 2

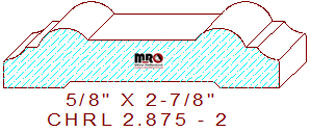

This distinguished chair rail moulding 2-7/8" - 2 measures 2.875" width by .625" thickness, requiring a 3-1/8" wide blank of four-quarter lumber for machining on an industrial moulder. The lovely pattern comprises a 1-1/8" sunk fillet on the top center. Flanked by a 17/32" convex arc joined to a 1/8" fillet and a 1/4" cove with a 3/64" eased edge on both sides of the design.

Mirror Reflections offers thousands of inspirational and compelling architectural moldings that will shape the contour of every exquisite room in your client's beautiful home and office. Download our free dxf files, and see how easy our services can increase productivity while reducing manufacturing costs.

Caution: the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic, or plastic sacrificial bed plate for these milling operations. For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 2.875" / Depth of Cut = .523" (top knives) & .062 (bottom blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
