Chair Rail Moulding 2-15/16"

Chair Rail Moulding 2-15/16"

Chair Rail Moulding 2-15/16"

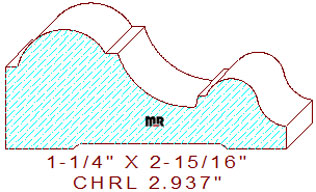

This uniquely bold chair rail molding 2-15/16" measures 2.937" wide by 1.250" thickness, enabling the use of six quarter lumber for machining on an industrail style molder. The striking profile is composed of a 59/64" wide thumbnail shaped arc, flanked by 1/8" wide lined segment on the top left. Connected to a deep sloping 13/16" radius cove that transitions into a 1/8" tall by 3/32" wide step joined to a two tangent radius cyma reversa leaving a 13/64" thickness dimension on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

Do you realize how important proper tool balance is to your current molding operation? Find out more about how critical it is to have perfectly balanced knives, screws, gibs in the cutter head, and the problems they create if you neglect to focus on these simple task. Protect your current investment in woodworking machinery. Your clients will appreciate your disciplined approach in molding manufacturing.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.937" / Depth of Cut = 1.016" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
