Moulding Knives by Mirror Reflections

Moulding Knives
by Mirror Reflections
(801)451-5987

Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Chair Rail Moulding 2-15/16" - 2

Chair Rail Moulding 2-15/16" - 2

Chair Rail Moulding 2-15/16" - 2

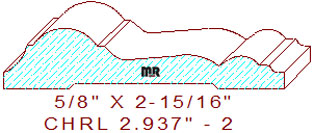

This classy chair rail moulding 2-15/16" - 2 measures 2.937" wide by .625" thickness. The fashionable profile is comprised of an off centered 13/32" half round circle flanked by small horizontal lines, connected to a 3/8" cove on the outer edge. The middle of the design consists of an elongated cyma recta formed from two partial circles connected to one another by a tangent angled line, joined to a thumbnail shaped arc with a small fillet and a 5/64" cove on the side edge. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

We offer two similar versions of this pattern in different widths for your review and consideration, chair rail 2.500" - 50 and chair rail 3.000" - 18. Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability, knowledge and experience to create profiles that will complement the architectural décor of your elegant home.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 2.937" / Depth of Cut = .481" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
