Chair Rail Moulding 3" - 101

Chair Rail Moulding 3" - 101

Chair Rail Moulding 3" - 101

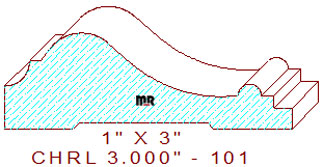

This colonial chair rail moulding 3" - 101 measures 3.000" wide by 1.000" thickness, enabling the pattern to be milled from five quarter lumber. The bold custom profile is composed of a deep sloping two tangent radius cyma reversa in the center, flanked by a 1/8" wide horizontal line and a 1/4" cove on the left, the opposite side consists of a 1/4" wide half round bead joined with a 1/8" wide line segment that transitions into a 3/16" wide by 1/8" deep notch leaving a 7/32" thickness dimension on the edge. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, Shop Fox, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .784" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
