Chair Rail Moulding 3" - 102

Chair Rail Moulding 3" - 102

Chair Rail Moulding 3" - 102

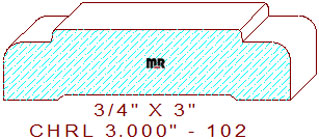

This modern-day chair rail/symmetrical door casing moulding 3" - 102 measures 3.000" wide by .750" thickness, permitting the pattern to be cut from four quarter lumber. The contemporary profile is composed of a two inch wide by 9/64" tall raised fillet with 1/16" eased edges on the top center, flanked by a 1/2" wide line segment with a 3/16" round-over leaving a 39/64" thickness dimension on each side edge of the detail. Browse our backout category for an appropriate relief cut for the bottom of this pattern, we’re confident you will find a suitable design to match your needs.

You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful pattern from the purchase dxf file link below. Check out our updated tooling and supplies catalog for other high quality products we supply for your moulder and knife grinding room, all with competitive pricing and fast shipping options.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .500" (top knives) & .062" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
