Chair Rail Moulding 3" - 108

Chair Rail Moulding 3" - 108

Chair Rail Moulding 3" - 108

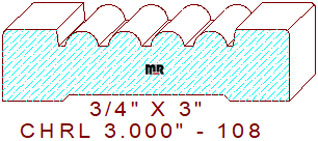

This reeded chair rail/door casing moulding 3" - 108 measures 3.000" wide by .750" thickness, permitting the detail to be milled out of four quarter lumber. The beaded symmetrical profile is composed of four recessed (.020") 11/32" wide half round beads divided by three 3/32" wide line segment in the center, the two outer sunk fillets measure 1/16" wide, joined to a 9/16" wide raised fillet with a 1/16" round-over on each side edge of the design. Glance through our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Ever wonder why some knives never exactly line up with one another in the cutter head? Perhaps a Weinig optical measuring stand and reviewing the process in which you align the blades in the cutter head will help eliminate this issue.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .218" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
