Chair Rail 3" - 109
Chair Rail 3" - 109

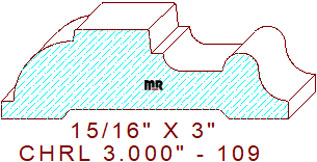

This astonishing beautiful 3" - 109 chair rail measures 3.000" wide by .937" thickness, necessitating the use of five-quarter lumber for milling on an industrial moulder. The embellishing profile is composed of a 1/8" horizontal segment at 3/16" thickness, joined to a 5/8" quarter round on the left side, connected to a 13/16" raised fillet with a 1/8" broad line in the center, attached to a 5/8" wide congee derived from a 3/16" cove merged with a two tangent radius cyma reversa, leaving a 3/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.750
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$253.00
$238.00
Total:
$491.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$268.00
$253.00
Total:
$521.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$290.50
$275.50
Total:
$566.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
