Chair Rail Moulding 3" - 116

Chair Rail Moulding 3" - 116

Chair Rail Moulding 3" - 116

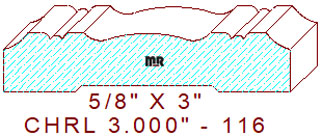

This chair rail/casing moulding 3" - 116 measures 3.000" wide by .625" thickness. The beautiful symmetrical design begins in the center with a bidirectional cyma recta that transitions into two raised fillets with 3/32" radius edges, separated by a tiny half round bead in the middle, joined to a 29/64" shallow cove on each side edge of the detail. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

We invite you to search for other design ideas for your client's elegant home, we have over 15,000 alternative profile options for you to choose from, simply alter the search parameters to view. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom profile designs.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 3.000" / Depth of Cut = .194" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
