Chair Rail Moulding 3" - 16

Chair Rail Moulding 3" - 16

Chair Rail Moulding 3" - 16

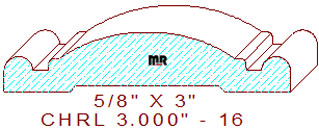

This luxurious chair rail moulding 3" - 16 measures 3.000" wide by .625" thickness, allowing the detail to be milled from four quarter lumber. The eloquent profile is composed of a 1-21/32" radius arch in the center, flanked by a 1/8" wide by 1/8" deep step with a 1/16" eased edge, connected to a 5/32" wide sunk fillet with a 5/16" wide half round circle on each side edge of the pattern. We offer a similar design in the same width but with different inner dimensions for your review and consideration, chair rail 3.000" - 21. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

We offer thousands of inspirational architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .563" (top knives) & .062" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
