Chair Rail Moulding 3" - 2

Chair Rail Moulding 3" - 2

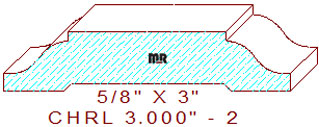

This lovely chair rail moulding 3" - 2 measures 3.000" wide by .625" thickness. The symmetrical profile is comprised of a 1-21/32" wide by 3/32" tall raised fillet in the center, attached to a two tangent radius cyma reversa/ogee on each side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from. These types of decorative moldings are generally installed to protect the backs of chairs from hitting and damaging interior walls.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .594" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
