Chair Rail 3" - 34

Chair Rail 3" - 34

Chair Rail 3" - 34

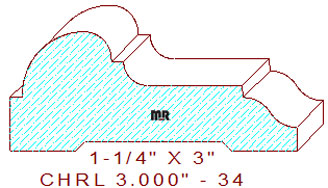

This distinguished chair rail 3" - 34 measures 3.000" wide by 1.250" thickness. This detail will require six-quarter lumber for milling on an industrial-style molder. The lavish pattern is comprised of a thumbnail shaped arc flanked by 1/8" wide line segments positioned at different elevations on the left, attached to a 1-1/4" wide 1/4" radius congee (cove tangent off a straight line) with a 1/8" vertical step, joined to two 21/64" tangent radiuses creating an ogee/cyma reversa on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a design to suit your needs.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability, knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = 1.000" (top knives) & .093" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
