Chair Rail Moulding 3" - 68

Chair Rail Moulding 3" - 68

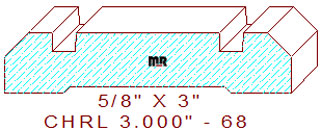

This contemporary grooved chair rail moulding 3" - 68 measures 3.000" wide by .625" thickness, the pattern will require four quarter lumber for milling. The well proportioned profile is composed of two 1/4" wide by 1/4" deep forty five degree chamfers on each side edge, attached to two 1/4" wide line segments that transitions into two 3/16" deep by 1/4" wide dado's with a 1-1/2" wide straight flat line in the center. We offer another similar design in the same width but with altered inner dimensions for your review and consideration, chair rail 3.000" - 15. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

Mirror Reflections has over thirty years of experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities, you will be pleasantly impressed with our services.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .312" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
