Chair Rail Moulding 3" - 89

Chair Rail Moulding 3" - 89

Chair Rail Moulding 3" - 89

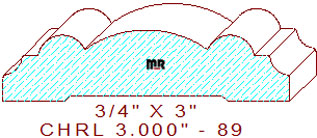

This belly-band chair rail/door casing molding 3" - 89 measures 3.000" width by .750" thickness permitting the use of four quarter lumber for milling on an industrial-grade molder. The beaded symmetrical pattern contains a 1-9/32" full convex semicircular arc on the top center. Flanked by a 1/4" radius half bead with an 11/64" wide horizontal fillet and a 13/64" cove with a 3/64" eased edge, leaving a 1/4" thickness dimension on each side edge of the design.

We're delighted you found a beautiful profile that interests you; consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you are new to the industry, read some of our informational articles, they will help you get started with all the basics. Just a few things we have in common is our passion for excellence and our quest to be paramount craftsmen for all our clients.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .625" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
