Our precise cad drawings contain plenty of important information that will assist you during setup and milling of this detail. Our acrylic templates provide enough blend areas on the knives. You will never realize where one cutter begins or ends. Our specific design features will substantially increase yield during the milling process.
For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

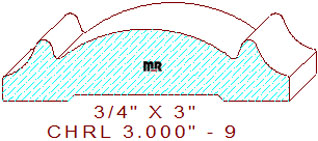

Width = 3.000" / Depth of Cut = .682" (top knives) & .063" (bottom cutters).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
