Chair Rail Moulding 3" - 90

Chair Rail Moulding 3" - 90

Chair Rail Moulding 3" - 90

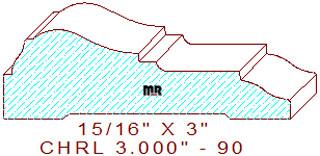

This custom chair rail molding 3" - 90 measures 3.000" width by .937" thickness, permitting the use of five quarter lumber for milling on an industrial-grade molder. The lovely pattern is also utilized as a window stool apron or door casing molding; it contains a vertical ogee flanked by two 3/32" wide line segments on the top left. The flat line on top connects to a shallow two tangent radius s-shaped curvature with a 3/16" full by 3/32" deep notch in the center. The remaining portion of the detail consists of a 7/8" broad congee with a 3/32" vertical step and a graceful ogee with a 3/64" eased edge on the design's right side edge.

Increase search efficiency while looking over 15,000 profile designs in our state-of-the-art molding catalog. Watch the short video on the first page of our catalog to find design ideas for your next woodworking project. We're sure you will locate the perfect embellished pattern to enhance your beautiful home or office's architectural style.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .919" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
