Chair Rail Moulding 3" - 92

Chair Rail Moulding 3" - 92

Chair Rail Moulding 3" - 92

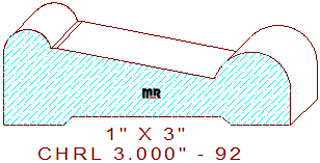

This distinctive chair rail molding 3" - 92 measures 3.000" width by 1.000" thickness, requiring the use of five quarter lumber for milling on an industrial-grade molder. The double bead angled profile contains a 1/2" broad half-circle attached to a 1/16" horizontal fillet on the upper left side. The flat line segment connects to a downsloping 10.82 degree beveled line with a 13/16" wide half-circle on the right side of the pattern.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind molder knives for all the major brand names of machinery, including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey, and more? Try our exceptional services; you will be delighted with the results; all the beautiful moldings you manufacture will surely be a cut above the rest.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .781" (top knives) & .093" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
